Product Description
Nitrate Removal System for Single Point of Use
This system comes with a top of the range nitrate removal filter so if nitrates are a concern, this system will provide safe drinking water.

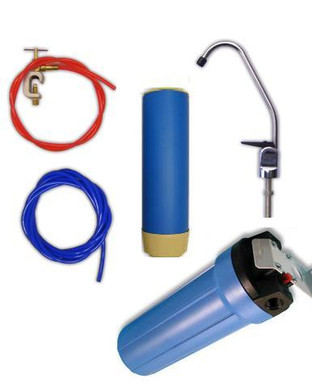

The system also includes a self-piercing saddle valve, tubing, slim-line filter housing with pressure release and faucet tap. The kit also comes with fittings to connect the 1/4" tubing spanner and housing bracket.
The only tool you would need to do a DIY install would be a drill to make a whole for the faucet tap.
Each Aqua Cure nitrate reduction cartridge uses Nitrex™ resin to remove nitrates and sulphates from potable water supplies. The resin is designed to give (donate) a chloride ion in exchange for nitrate or sulphate. Three standard cartridges are available as detailed below but this kit uses the AC14. The cartridges should not be used on water supplies of an unknown microbial quality.
Whole house nitrate removal systems are also available, please call us on 01704 531556 if you need further information.
Each cartridge has a finite exchange capacity based upon the combined total of nitrates and sulphates in the feed water (ppm). The total capacity should not be exceeded, so regular checks should be made, to confirm the levels being treated, the volume throughput of a given cartridge and the quality of the treated water supply. A water meter can be of benefit when looking to gain optimal performance. If in doubt, always consult your supplier.
| |||
| AC14 | AC44 | AC74 |
Dimensions mm (approx) | 73 x 248 | 73 x 496 | 114 x 496 |
Format | Up-flow | Up-flow | Up-flow |
Inlet Filter | Polyester Pad | Polyester Pad | Polyester Pad |
Exit Filter (20 micron) | Polypropylene | Polypropylene | Polypropylene |
Sealing Washer | Buna – N | Buna – N | Buna - N |
Volume of Resin (litres) | 0.6 | 1.5 | 4.5 |
Maximum Flow (litres / min) | 2.5 | 8.00 | 20.0 |
Treatment Capacities(Litres treated based upon combined total of nitrate and sulphate.) | ||||
| 50ppm | 100ppm | 150ppm | 200ppm |
AC14 | 500 | 250 | 160 | 125 |
AC44 | 1500 | 750 | 490 | 375 |
AC74 | 4500 | 2250 | 1480 | 1125 |
The above figures are for guidance only. Actual performance will depend upon site conditions, age of cartridge and usage patterns. Capacity calculations must be based upon combined nitrate and sulphate levels. If in doubt – consult your supplier. |
