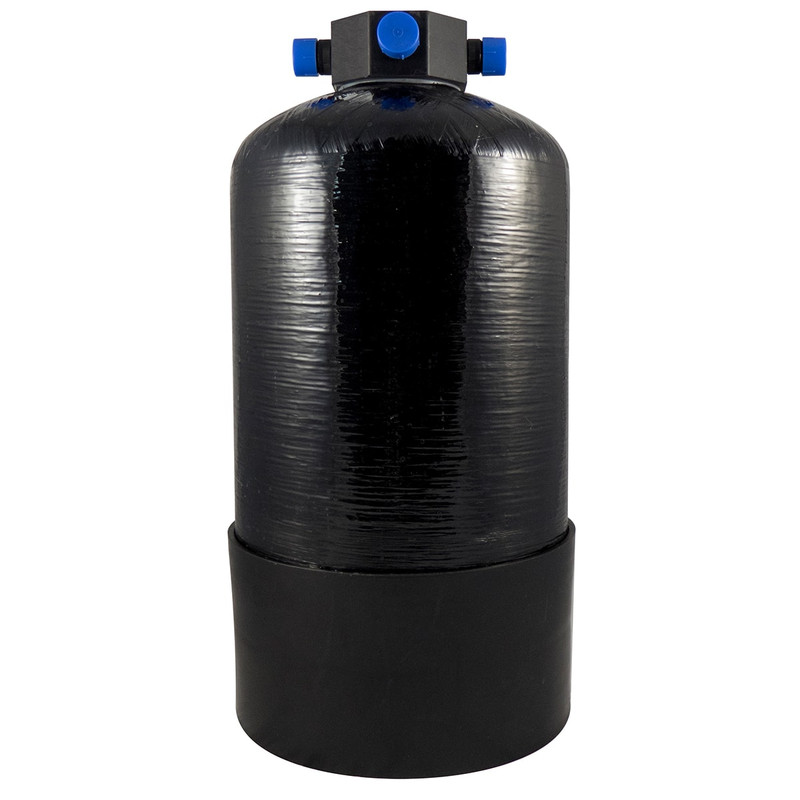

BanHard Calcium Treatment Unit (CTU) - 3 Port - 18 Litre - 13,160 Litre Capacity

BanHard Calcium Treatment Unit (CTU) - 3 Port - 18 Litre - 13,160 Litre Capacity*

BanHard Calcium Treatment Units are designed to eradicate limescale and improve the taste of incoming feed water. CTU's will treat water for a set capacity which is dependent on water conditions, once exhausted the CTU can be regenerated. Once a new BanHard CTU is purchased from us, you are then entitled to the regenerated CTU prices.

CTU Features

• 3 Port Head with single inlet and two outlets (3/4" BSP connections)
• Integral bypass (% bypass varies according to pressure and flow rate)
• 13,160 litres capacity*
• Vessel Dimensions = 530mm (h) x 263mm (dia)

*Capacity is based on a temporary water hardness level of 200ppm. Incoming feed alkalinity levels also affect overall capacity.

Typical Applications Include:

• Coffee machines
• Water boilers
• Combination ovens (requires a 3 port CTU)
• Vending equipment
• Baking ovens
• Bulk brewers

The 3 port head has a single inlet and two outlets. One of the outlets gives treated water blended (% bypass varies according to pressure and flow rate) for feeding steam generators. The second outlet is for quench.

• This system doesn't mix carbon with the resin, so regeneration becomes possible with positive results for the environment.
• The carbon is located in the riser tube, which is the best place for polishing the water, giving maximum taste reduction.
• The vessels use regenerated resin, which has a higher exchange capacity than new resin, so it will give maximum service time.
• Fitted with 3/4" NRV male fitting on the inlet / outlets.

BanHard are one of the best established brands of Calcium Treatment Unit in the UK today for treating water over 180ppm hardness. Andrew's Water Treatment stock a wide variety of BanHard Calcium Treatment Units with different sized capacities. 3 port heads and a variety of other options are also available for combi ovens.

TYPE 3: 3 Port - BLACK

Used for combination ovens including Rational, Electrolux, Elona, Lincat, Hupperbusch, Lainox, Falcon and MKN (check equipment requirements).

The 3 port head has a single inlet and 2 outlets. One of the outlets gives treated water (18%* blend) for feeding steam generators.

We also offer a cost effective regeneration service for exhausted CTU's. Please contact us for further details or to discuss your requirements.
